Cast iron table clamp
« on: December 16, 2014, 04:27:03 AM »
Hi

Does any one recognise this table clamp?? It appears to have the same form of clamping screw as the grinder next to it... so assumed a US origin..

An unknown from Outils Anciens in France: http://www.forum-outils-anciens.com/t7852-besoin-d-aide.htm?start=15
« Last Edit: December 16, 2014, 04:29:26 AM by Billman49 »
Logged

Offline Bill Houghton

  • Hero Member
  • *****
  • Posts: 2865
Re: Cast iron table clamp
« Reply #1 on: December 16, 2014, 10:27:42 AM »
Can't help, but I'm curious: what does a table clamp do?  I mean, "clamp tables," that's obvious; but I'm uncertain as to its uses.
Logged

Offline Billman49

  • Hero Member
  • *****
  • Posts: 790
  • Collector of edged tools, especially billhooks...
    • A Load of Old Billhooks
Re: Cast iron table clamp
« Reply #2 on: December 16, 2014, 01:08:52 PM »
Clamps TO a table - e.g. hand grinders and kitchen equipment.... and no, hand grinders are not for grinding hands....
Logged

Offline Bill Houghton

  • Hero Member
  • *****
  • Posts: 2865
Re: Cast iron table clamp
« Reply #3 on: December 16, 2014, 02:29:22 PM »
Quote from: Billman49 on December 16, 2014, 01:08:52 PM
Clamps TO a table - e.g. hand grinders and kitchen equipment.... and no, hand grinders are not for grinding hands....
Bench grinders for benches...angle grinders for angles...
Logged

Offline Rhoderman

  • Full Member
  • ***
  • Posts: 26
Re: Cast iron table clamp
« Reply #4 on: December 16, 2014, 07:56:11 PM »
The bolt is through it in the wrong direction.
It will probably have A33 in the casting on the opposite side shown.
It came off a red hand grinder that had a gold diamond shaped logo/decal on it.  Probably old US or maybe Japanese.  Could also be Tiawanese for all I know.
I bought mine at a garage sale, and it didn't have the tool rest.
The inside gears seem to be bad, but I still haven't torn it down the rest of the way.


Logged

Offline Billman49

  • Hero Member
  • *****
  • Posts: 790
  • Collector of edged tools, especially billhooks...
    • A Load of Old Billhooks
Re: Cast iron table clamp
« Reply #5 on: December 17, 2014, 02:51:47 AM »
Hi Rhoderman - that't it exactly... Never seen that particular type of hand (powered) grinder before - can you please post an image of it out of its box, so we can see how the clamp attached to the grinder body?? Many thanks...
Logged

Offline Billman49

  • Hero Member
  • *****
  • Posts: 790
  • Collector of edged tools, especially billhooks...
    • A Load of Old Billhooks
Re: Cast iron table clamp
« Reply #6 on: December 17, 2014, 03:06:33 AM »

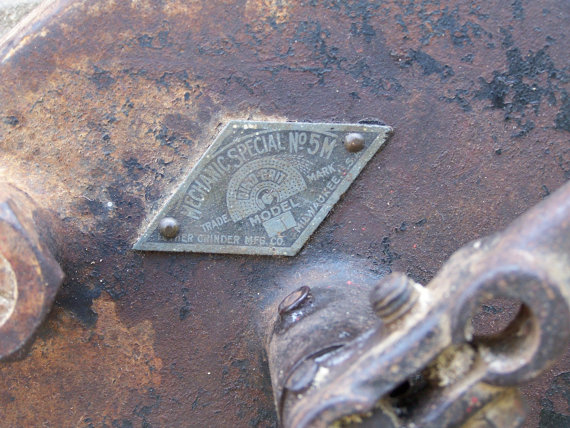

Diamond trade label??????
« Last Edit: December 17, 2014, 03:08:04 AM by Billman49 »
Logged

Offline Billman49

  • Hero Member
  • *****
  • Posts: 790
  • Collector of edged tools, especially billhooks...
    • A Load of Old Billhooks
Re: Cast iron table clamp
« Reply #7 on: December 17, 2014, 03:15:42 AM »
It's a Luther Grinder Mfg Co (Milwaukee) - who I guess became the American Grinder Mfg Co

Logged

Offline Billman49

  • Hero Member
  • *****
  • Posts: 790
  • Collector of edged tools, especially billhooks...
    • A Load of Old Billhooks
Re: Cast iron table clamp
« Reply #8 on: December 17, 2014, 03:23:30 AM »
See: http://toolemera.com/catpdf/luther1920CAT.pdf  pages 8 to 13 - the Popular 'Best Maide'
